Installing composite decking is an excellent way to upgrade your outdoor entertaining area while drastically cutting down on your weekend maintenance routine. Unlike traditional timber, premium composite boards resist rotting, splitting, and warping without the need for annual sanding, oiling, or painting.
To guarantee a flawless, long-lasting finish, you must strictly follow precise guidelines regarding thermal expansion gaps, structural joist spacing, and sub-frame ventilation. Failing to account for these specific factors will compromise the structural integrity of your entire deck, leading to costly and frustrating repairs down the track.
1. Ignoring Thermal Expansion and Contraction
The most common error when installing composite decking is failing to account for thermal movement. Unlike natural timber which expands and contracts primarily with moisture, composite material moves longitudinally in response to temperature fluctuations.
If you butt composite boards tightly against each other or against a solid brick wall, the boards will buckle, warp, and sheer their fasteners when they heat up under the Australian sun. This structural distortion permanently damages the core matrix of the product.
Always consult the manufacturer’s gapping matrix before cutting your boards to size. Generally, you must leave a 4mm to 6mm gap at the end-to-end butt joints and where the boards meet walls or posts.
2. Setting Your Joist Spacing Too Wide
Timber possesses a natural internal rigidity that allows it to span wider distances without bowing. Composite decking is inherently more flexible than natural hardwood and requires a much more robust underlying structural support network.
Exceeding the maximum recommended joist spacing creates a bouncy, unstable deck surface that will permanently sag under foot traffic. This completely destroys the solid, premium feel that a professionally constructed alfresco area should provide.
To keep your surface perfectly flat and structurally sound, ensure your sub-frame adheres to these standard measurements:
- Standard Parallel Board Layout: Maximum 400mm centre-to-centre joist spacing.
- Diagonal Board Layout (45 degrees): Maximum 300mm centre-to-centre joist spacing.
- Commercial Applications: Strict 300mm centre-to-centre maximum layout.
3. Restricting Airflow and Ventilation Under the Deck
Composite decking requires continuous cross-ventilation underneath the sub-frame to maintain uniform temperature and moisture levels. While the top capped layer is highly protected, the underside remains susceptible to environmental stress if trapped in stagnant, humid air.
Inadequate sub-deck ventilation leads to extreme heat accumulation and localised humidity, which causes uneven board expansion, cupping, and accelerated sub-frame rot. Without proper airflow, the temperature differential between the top and bottom of the board forces the edges to curl upward.
You must maintain a minimum clearance of 100mm to 150mm between the ground and the underside of your joists. Additionally, you must incorporate open pathways, lattice, or ventilated screening around the perimeter to facilitate continuous cross-flow ventilation.
4. Reusing a Decaying Timber Sub-Frame
It is incredibly tempting to save time and money by laying shiny new composite boards directly over an existing timber sub-frame. However, while your premium composite surface is engineered to last upwards of 25 to 30 years, your old timber framing may already be nearing the end of its useful life.
Laying new composite decking over an uninspected, deteriorating timber frame guarantees premature structural failure, forcing you to rip up your expensive surface just to fix the rotting foundations beneath. It is an oversight that turns a cost-saving measure into a financial disaster.
Thoroughly inspect your existing joists and bearers for signs of dry rot, termite damage, or structural sagging before proceeding. If you are building a new frame, use high-quality treated H3 or H4 timber and apply a protective joist flashing tape over the top faces to seal out moisture.
Timber vs. Composite Installation Requirements
Understanding the structural differences between these materials prevents you from applying outdated timber habits to modern composite products.
| Feature | Traditional Timber | Composite Decking |
| Residential Joist Spacing | Up to 450mm centres | Maximum 400mm centres |
| Primary Material Expansion | Widthways (driven by moisture) | Lengthways (driven by heat) |
| Butt-Joint Gapping | Installed flush or tight | Requires 3mm to 6mm thermal gaps |
| Fastener System Options | Standard top-fix screws or nails | Hidden clip systems or specialised screws |
| Pre-Drilling Requirements | Optional for most softwoods | Mandatory to prevent surface mushrooming |
5. Using the Wrong Fasteners or Overtightening Clips
Most modern composite brands utilise hidden fastening systems that slide into grooves along the edges of the boards. These systems are highly effective for creating a sleek, screw-free aesthetic, but they must be installed with care.
Using standard timber screws or over-tightening your hidden locking clips pins the boards down too tightly, restricting natural thermal movement and causing the edges to split or the clips to snap. The boards must be allowed to slide slightly within the clips as temperatures change.
Conversely, under-tightening your fasteners allows the boards to shift permanently out of alignment under foot traffic. Adjust your drill clutch setting so that the clips are firmly secured against the joist without crushing or distorting the clip mechanism.
6. Neglecting Pre-Drilling and Allowing “Mushrooming”
If your deck design requires you to face-fix boards down from the top rather than using hidden clips, you cannot simply drive a standard timber screw straight into the surface. Composite materials are incredibly dense and do not compress the way natural wood fibres do.
Driving a fastener directly into composite without pre-drilling forces excess plastic and wood fibre upward, creating an unsightly, raised bump known as a “mushroom” around the screw head. This ruins the clean profile of your deck and creates sharp edges that can catch on bare feet.
To prevent this issue, you must always pre-drill and countersink your holes using a specialised smart tool designed for composite materials. Alternatively, you can utilise proprietary, colour-matched composite screws featuring reverse threads that pull the loose material back down into the hole for a perfectly flush finish.
7. Failing to Plan for Picture Framing and Fascia Trim
Because many composite boards feature distinct internal profiles—such as hollow cores or light-weight channels—the raw cut ends cannot simply be left exposed to the elements. Leaving these ends uncovered looks highly unprofessional and allows water and pests to collect inside the hollow chambers.
Failing to design a “picture frame” border or plan for perimeter fascia boards results in a messy, unfinished look that detracts from the value of your home. Trying to retrofit a border after the main field of boards has been laid is incredibly difficult and usually requires extensive modification to your sub-frame.
Plan your layout from day one to include a perimeter board that runs completely perpendicular to your main decking boards. This design hides all raw cut ends, neatly covers the perimeter timber framing, and provides a crisp, professional border that elevates the entire project.
Key Takeaways
- Incorporate precise expansion gaps of 4mm to 6mm at all butt joints and perimeters to prevent dramatic buckling and warping.
- Enforce strict joist spans by keeping your centre-to-centre structural spacing to a maximum of 400mm for residential projects.
- Prioritise continuous cross-ventilation beneath the deck structure to eliminate moisture build-up and heat cupping.
- Never rely on a failing foundation; thoroughly inspect or replace old timber sub-frames before investing in new composite boards.
- Utilise correct fasteners and torque settings to allow the material to move naturally without snapping clips or splitting edges.
- Pre-drill and countersink all face-screws to eliminate unsightly surface mushrooming around fastener heads.
- Integrate a picture-frame border into your initial design to cleanly mask raw cut ends and hollow internal board profiles.
Need Expert Advice for Your Backyard Upgrade?

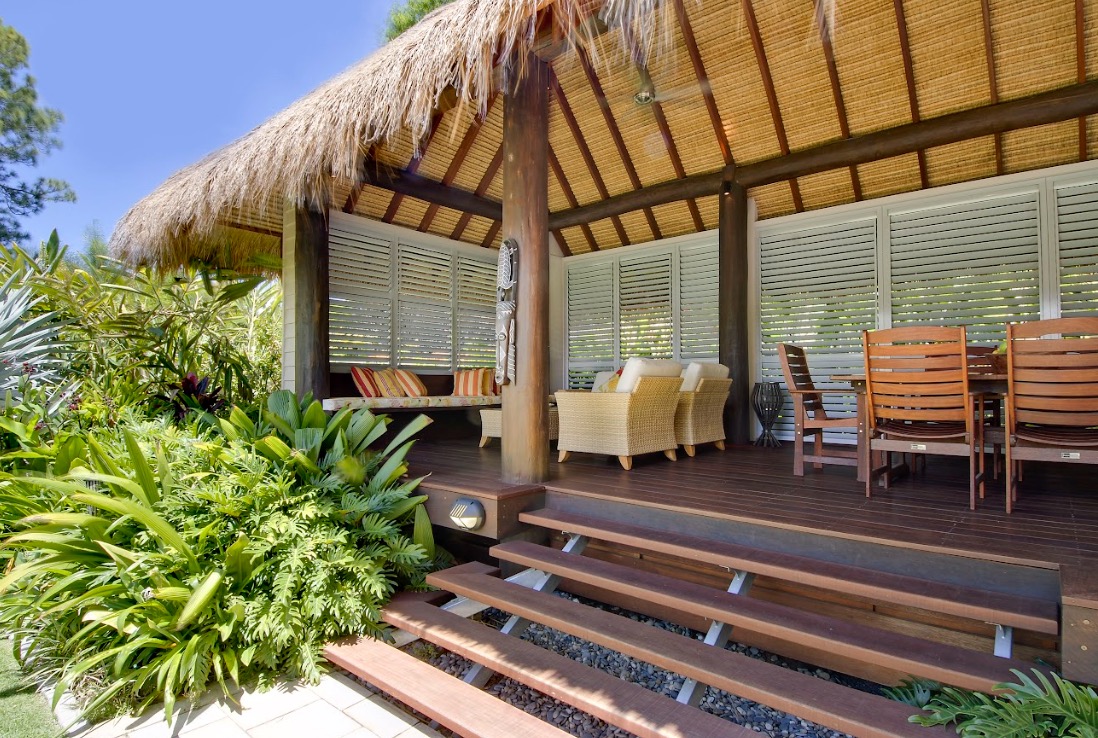

Creating the perfect outdoor lifestyle space requires high-quality materials and precise structural execution. If you want to pair your new composite deck with a premium, professionally engineered tropical thatch shelter, similar to the flawless style shown in the reference file decking07.jpg, the experienced team at East Coast Bali Huts and Gazebos is here to help.
